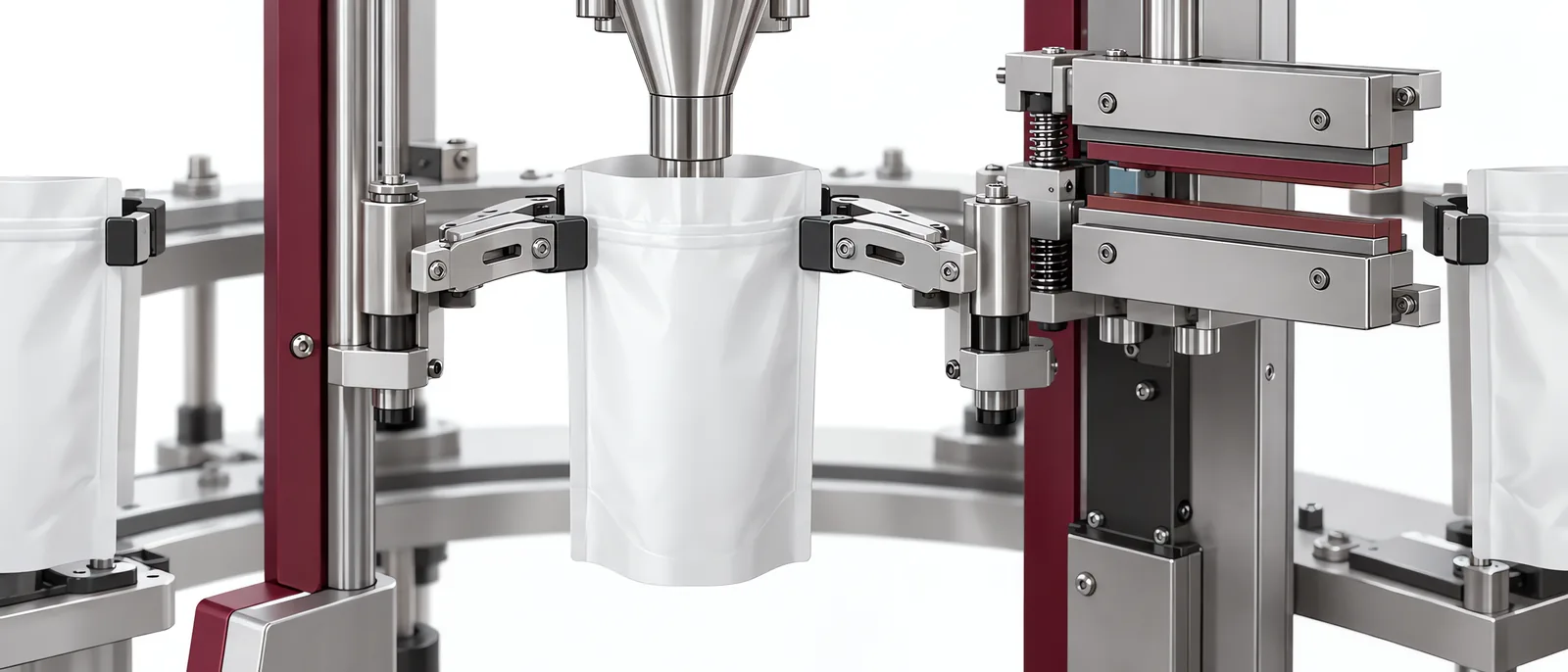

Conceptual equipment illustration.
A pouch filling machine must present an open pouch, deliver the product and close it without leaving contamination in the seal area. Choose the pouch-handling method and filling process together. A dosing unit that works well over a rigid bottle may need different positioning and containment over a flexible pouch.
For filling-machine integration, define whether the line handles premade pouches or forms them from film.
Premade Pouches and Form-Fill-Seal Have Different Inputs
A premade-pouch machine receives individual bags and opens them before filling. A form-fill-seal system creates the package from its film supply as part of the process. These architectures change the incoming material, forming operations and changeover requirements.
Mespack’s H180SC description describes transfer of premade pouches into opening, filling and top-sealing stations. Its input and station configuration describe that particular premade-pouch machine.
Specify the actual pouch construction, opening features and dimensions. Include acceptable supply variation in the sample trial. A zipper or spout can introduce a different handling route.
Confirm Opening Before Dosing
The sequence should distinguish a correctly opened pouch from a missing, partly opened or mispositioned one. Define whether the machine inhibits filling or handles the pack through another controlled route.
Test the checks with real abnormal samples. A vacuum sensor at the pickup does not necessarily establish that the mouth is fully open at the filling position.
For liquids, the liquid-filling selection guide addresses the dosing principle. The pouch station still needs to control splashing, drips and pouch movement around that principle.
Keep Product Away from the Seal
Observe the pouch after filling and before closure. Product caught in the sealing area can affect the final seal even when the jaws reach their expected position.
Establish the required fill height and settling/cleaning step from the product and package. Trial the seam using the actual film and product. Verify sealing temperature, pressure and dwell together for the specified film and product.
The capping and sealing scope covers closure choices. For pouches, keep visual seal appearance distinct from the required strength or integrity test.
Identify Interrupted Packs
A line stop may leave pouches at several process stages. Define which can continue and which need removal or inspection after restart. Retain the association between pack state and final result.
The packaging-line integration scope should include product supply, pouch availability and accepted-pack transfer. A machine output rating does not establish that all three flows remain coordinated.
Discuss pouch filling with Motionwell to plan the container handling and inspection around the selected dosing equipment.
