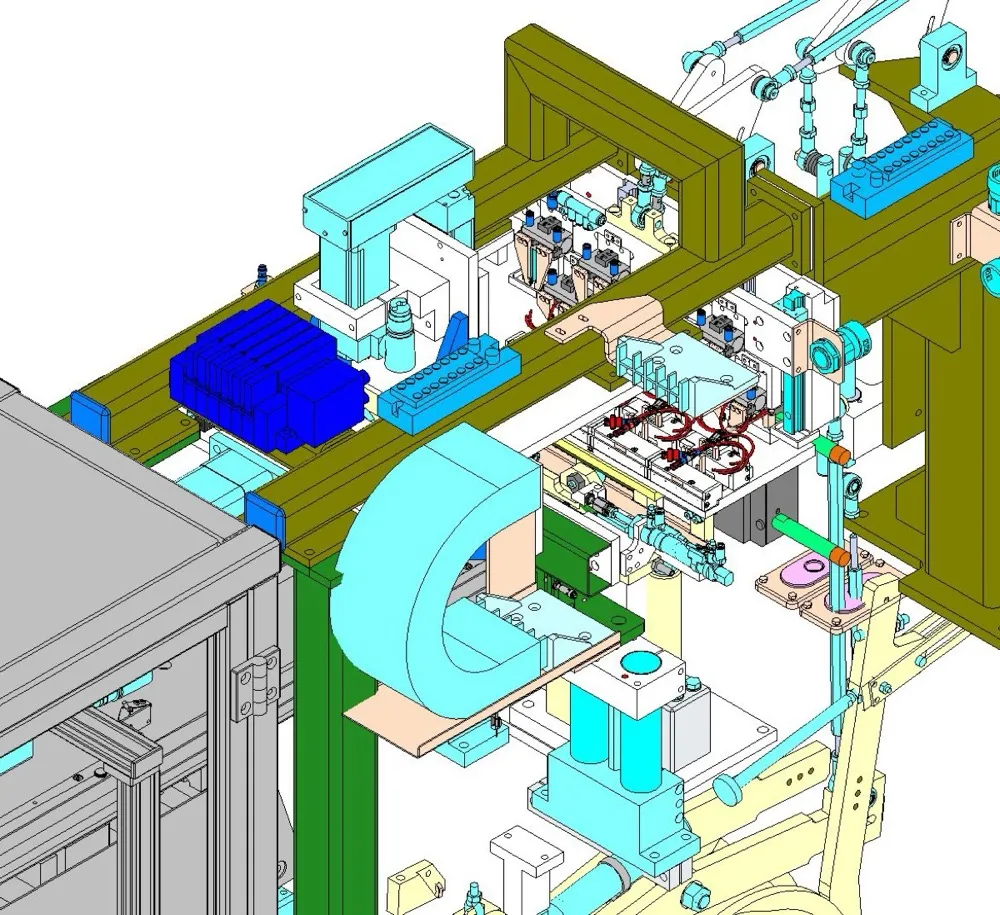

Medical device assembly automation combines the process with its verification: controlled assembly parameters, repeatable product handling, inspection, traceable results and equipment qualification. Define those requirements together so the machine can produce the device and the evidence needed to release it.
Motionwell designs and builds this equipment in Singapore. Delivered work includes cleanroom automated test equipment with its own fan filter units and a tray-fed filling and sealing machine for medical and pharmaceutical consumables, with product-contact surfaces selected for the cleaning process.
Most articles about automating medical device manufacturing are written from the buyer’s side. This one is written from the machine builder’s side: what actually changes in the design when the machine has to be qualified, what those changes cost you in schedule, and which decisions you cannot defer past concept approval. The points on rotary indexing are design practice, and the full method is in how we design multi-station rotary assembly machines.
What Changes When an Assembly Machine Has to Be Validated?
A general industrial machine has to work. A medical device machine has to work, and be provable. That second requirement rewrites parts of the design that have nothing obviously to do with compliance.
| Design area | General industrial | Medical device assembly |
|---|---|---|
| Product-contact surfaces | Whatever is convenient and durable | Specified material and surface finish, documented, and cleanable with the customer’s actual agents |
| Frame and enclosure | Painted steel, open frame acceptable | Smooth, wipe-down surfaces, no horizontal ledges that trap particulate |
| Process parameters | Tuned during commissioning, saved in the PLC | Recipe-controlled, access-restricted, and logged with who changed what and when |
| Rejects | Diverted to a bin | Diverted to a locked or clearly segregated reject path with a counted, reconciled record |
| Changeover | Fast is good | Fast is good, but repeatable and verifiable matters more; tooling is often keyed or poka-yoked |
| Handover | Manuals and drawings | Design qualification, IQ and OQ protocols, executed and signed, plus PQ support |
The practical consequence is that the qualification scope has to be agreed before detail engineering starts, because it determines the control architecture. Retrofitting an audit trail into a finished PLC program is an expensive way to learn this. Our page on computer system validation for production equipment sets out what evidence each stage needs.
Which Steps on a Medical Device Line Are Worth Automating First?
The instinct is to automate the assembly. The better first move is usually inspection.
Inline vision can inspect each presented unit and record the detected defects. Establish its detection capability with representative defect samples and challenge tests, then measure false accepts and false rejects against an agreed reference method. Inspection coverage and detection capability together determine how useful the results are for quality decisions and the investment case.
| Sequence | What to automate | Why in this order |
|---|---|---|
| 1 | Inline verification and inspection | Fastest payback, least disruption, produces the baseline data |
| 2 | Records and data integrity on existing equipment | Reduces audit exposure before the next inspection, independent of new hardware |
| 3 | Marking, coding, and code verification | Deadline-driven by market access |
| 4 | Assembly and test stations | Highest capital, needs the data from step 1 to specify correctly |
| 5 | Material transport between stations | Only worth doing once the stations it feeds are stable |
This ordering is not universal. If your bottleneck is a single manual assembly step with a known defect mode, go there first. But if you cannot yet state your defect rate to one decimal place, step 1 is where to start.
How Do Cleanroom and Material Requirements Change the Machine Design?
This is where a machine builder earns their fee, and where most of the avoidable cost sits.
Materials are specified. On our tray-fed filling and sealing machine the product-contact surfaces are stainless steel, and both the grade and the surface finish are written into the specification before detail design starts. That is not a preference. It is a line the customer’s quality team will check against the as-built documentation. The choice between SUS304 and SUS316L is usually driven by the cleaning chemistry, chlorides in particular.
The cleanroom class drives the machine envelope. The cleanroom automated test equipment integrates fan filter units into the machine itself, so the machine maintains its own clean environment and does not depend on the room around it. That decision changes the enclosure design, the airflow path, the cable routing, and the maintenance access, all at concept stage.
Airflow and access fight each other. Every service panel is a leak path; every sealed panel is a maintenance problem. Resolving that trade is a layout decision, and it is very hard to revisit after the frame is welded. The broader set of constraints is covered in our cleanroom automation guide.
| Environment | Frame | Product-contact material | Surface treatment |
|---|---|---|---|
| Electronics and cleanroom | Anodised aluminium extrusion | PEEK, Delrin, anodised aluminium | Hard anodise |
| Pharmaceutical and GMP | SUS304 or SUS316L | SUS316L | Electropolish |
| Device assembly, non-sterile | Anodised aluminium | Stainless or engineering polymer | Anodise or passivate |
What Does 100% Inline Inspection Demand from the Machine?
Vision projects fail on mechanics far more often than on optics. The camera is usually the easy part.
- Presentation repeatability. If the part sits differently in the nest each cycle, no algorithm will save you. The nest sets your detection limit.
- A stable trigger. The inspection window has to be deterministic. On a multi-station rotary assembly machine, inspection sits at fixed stations on a servo-indexed dial precisely because that makes the trigger repeatable.
- Lighting that survives the factory. Ambient light changes when someone opens a roller shutter. If the station is not shrouded, your false reject rate becomes a weather report.
- A reject path that can be reconciled. Every rejected unit has to be counted, segregated, and accounted for against the batch record.
The camera and algorithm side (smart camera versus PC-based, false-reject tuning, and traceability) is covered on the machine vision inspection page, and the electronics-side selection method is in our vision inspection guide.
How Should a Multi-station Rotary Assembly Machine Be Laid Out for a Validated Device?
Four layout decisions interact with validation, and each is cheaper at concept review than after the table is cut.
The nest is the traceability carrier. On a dial the part is loaded into a nest once and stays in it until the unload station releases it, so the orientation and identity established at load are what every later station works on. That single-carrier property is what the architecture is bought for on a device line: every result the machine records can be written against the nest position and the part identity. The nest is cut around the part’s datum features, and a part with no repeatable datum cannot be held reliably through one operation, let alone through a sequence of them, which is a reason to stop drawing the dial and go back to the part.
Verify after each operation that can fail. The station list is the process sequence plus a check behind every step whose failure the next step would hide. A press station records its force-displacement curve against the part identity; a vision station records the measured values and the decision. Each check is a validation entry as well as a station, which is why station count sits at the top of the cost table further down.
Divisions are geometry. The number of divisions is fixed the day the nest pitch and dial diameter are drawn, and device processes acquire stations after that day: a corrective action adds an inspection, a design change adds an operation. An empty division or two held in reserve at concept costs a little dial diameter; the same station added later costs a new table.
Indexer choice follows the dwell. A mechanical cam indexer suits a settled motion profile. A servo indexer allows the index move and shared dwell to be adjusted by recipe. On a rigid dial, all nests index together, so the longest station operation still sets the common dwell unless that operation is split across positions or decoupled. Control and record the recipe parameters that affect the validated process.
The dial-versus-inline decision itself, including when a long operation or a wide product mix argues for an inline conveyor instead, is on our rotary indexing vs inline assembly page. Feeder placement outside the ring and escapement design are on the part feeding and presentation page.
Where Do Electronic Records Touch the Machine Design?
Wherever an operator can change something that affects the device. In practice that means the HMI, the recipe store, and the reject counter.
The equipment-side requirements under 21 CFR Part 11 are concrete: user login with role-based permissions on the HMI, an audit trail entry for every recipe change, setpoint modification and alarm acknowledgement, synchronised time across the PLC and any logging server, and a defined retention and backup process. None of these are add-ons. They are architecture decisions taken before the first line of PLC code.
Motionwell now delivers this as its own scope: an electronic device history record system was accepted as a standalone order in August 2026, rolling out site by site for a medical device manufacturer. The equipment-side checklist is on our 21 CFR Part 11 and EDHR page.
How Does UDI Marking and Code Verification Fit on the Line?
Unique Device Identification means each unit carries a device identifier and a production identifier that a reader can verify at line speed. On the machine, that is three physical additions: a coder, a camera that grades the printed code, and a reject mechanism that removes any unit whose code cannot be read or does not match.
The sequence matters. Grade the code after it is applied and before the unit is aggregated into a case, because a bad code discovered after aggregation forces you to break the case and reconcile the record. Motionwell integrates code readers and coders on packaging lines; the layout rules, camera placement, and line-stop behaviour are covered on the pharmaceutical serialization page, which applies equally to device UDI. The same reasoning drives the design of pharmaceutical packaging lines.
What Drives the Cost and the Schedule?
The robot drives neither. Four other things drive both.
| Driver | Effect |
|---|---|
| Station count | Each station adds tooling, control, and a validation entry. The count is set at concept and is the single largest cost lever. |
| Cycle time target | A target that forces a second parallel station roughly doubles that station’s cost. Test whether the target is a real constraint or an inherited number. |
| Qualification scope | IQ and OQ protocols, execution, and PQ support typically add four to eight weeks. Mostly documentation and protocol time. |
| Product design stability | A schedule risk that recurs. If product geometry changes after detail engineering starts, the tooling changes with it. Freeze the product before detail design. |
The number for a given machine comes out of the concept review, because those four levers set it and anything quoted before the review is priced against assumptions about them. What can be said earlier is which of the four moves your number the most, and that conversation is worth having before you write the budget. The general build sequence and timeline for this class of equipment is set out in our guide to special purpose machine design.
Which Robot Platforms Fit Medical Device Assembly?
Selection is driven by the task, the cleanroom class, and the safety case.
| Platform class | Where it fits | What choosing it costs you |
|---|---|---|
| Collaborative arm | Assembly, dispensing, packaging and machine tending where an operator shares the space | Speed. A force-limited arm is slower than the same reach behind a fence, and the contact assessment is re-argued every time the tooling changes |
| Small collaborative arm | Light assembly and tray handling where the footprint is the binding constraint | Payload and stiffness. A cell sized around the smallest arm that fits has no headroom when the product gains a component |
| SCARA | High-speed pick-and-place and precision insertion inside a guarded cell | Floor area and access. Guard standoff, light curtain distance and door swing are part of the footprint, never an allowance on top of it |
| Six-axis industrial arm | Higher payload, longer reach, and orientation changes a SCARA cannot make | The same guarding cost, plus a layout that has to survive the arm’s full envelope and never just the path it normally runs |
| An arm the plant already owns | Sites standardised on one platform, holding spares and trained programmers for it | Whatever that platform cannot do. Reusing it is the right answer until it forces a second station to hold cycle time, at which point it is the expensive answer |
Cleanroom class narrows the list again, and it narrows it on the whole moving assembly. Ask for the cleanroom classification evidence for the arm, then ask the same question of the gripper, the cable carrier and the tool changer, since those are what move fastest and shed closest to the product. An arm rated for an ISO Class 7 room carries no rating for the tooling somebody bolts to its wrist.
If a collaborative robot is proposed for a cleanroom assembly cell, settle the safety case before the layout, using the ISO/TS 15066 collaboration modes as the starting point.
Which Standards Frame the Safety and Electrical Design of the Machine?
Four documents on the machine side, one on the customer’s side, and the buyer owns more of the inputs than the list suggests.
ISO 12100 is where the risk assessment starts. The limits of the machine are set for every operating mode, including setup, feeder replenishment, jam clearing and cleaning; the hazards are identified against each mode; and risk is reduced in the standard’s order of inherently safe design first, safeguarding second and information for use last. The buyer’s input is the list of modes, because a cleaning routine the builder never heard about is a hazard nobody assessed.
ISO 13849-1 then sets how good each safety function has to be, from the severity of the possible injury, how often someone is exposed and whether the hazard can be avoided. A door opened several times a shift for feeder replenishment is a different safety function from a maintenance door opened rarely with the machine isolated, and the exposure frequency is a number only the plant can supply. Where a robot loads or unloads, ISO 10218-1 applies to the robot and its integration alongside the machinery standards. Its 2025 edition is the first substantive revision since 2011 and references the 2023 edition of ISO 13849-1, so a safety file still documented against the 2015 edition will need its performance level calculations restated when the machine is re-assessed.
IEC 60204-1 governs the electrical build the safety functions live in: the supply disconnect, protection against electric shock, the emergency stop category, conductor identification and enclosure requirements, and the documentation. It is the standard a control panel for an EU-market machine is built to, with NFPA 79 as the counterpart for a US-market machine, so the destination market of the device line is a panel design input.
On the customer’s side sits ISO 13485, which the device manufacturer runs under and the machine is not certified to. What the manufacturer’s quality system takes from the machine is process validation, traceability, control of the measuring instruments inside the machine, and records. Each lands on the design: parameters held in a controlled recipe, results written per part against the nest identity, load cells and cameras treated as calibrated instruments with a schedule and reference standards the technician can reach, and curves and inspection results kept where the manufacturer can retrieve them. The records half of that is the Part 11 material above. Software validation follows GAMP 5, whose second edition sets the software category and, from it, how much validation evidence the machine has to carry; control software written by the builder for one machine sits in a higher category than configured standard software.
| Standard | What it decides on the machine | Input the buyer has to supply |
|---|---|---|
| ISO 12100:2010 | Which hazards exist in each operating mode and whether a safety function is needed for each | Every mode the machine will see, including cleaning and changeover |
| ISO 13849-1:2023 | The required performance level of each door, light curtain and stop | How often each access point is opened, and by whom |
| ISO 10218-1:2025 and ISO 10218-2:2025 | Part 1 covers the robot; Part 2 covers its application and integration into the cell | Tooling, access tasks and whether operators share the robot workspace |
| IEC 60204-1:2016+A1:2021 | Supply disconnect, shock protection, emergency stop category, panel build and documentation | Destination market and site electrical supply |
| ISO 13485:2016 | What evidence the manufacturer’s quality system needs from the machine | Which records release the device, and in what form |
| GAMP 5, second edition | The software category and the validation evidence that follows | Whether your validation plan treats the control software as custom or configured |
How the register of safety functions is built and validated is on our machine safety and compliance page.
What Should You Have Ready Before a Concept Review?
The concept review is where the money is decided. Bring these and the review produces a design.
- Product drawings, plus 20 to 50 real parts including the failure modes you care about
- The current process: manual steps, cycle time, operator count, and measured defect rate
- Volume targets by shift, and the changeover frequency between variants
- Cleanroom class, cleaning agents, and any material restrictions from your quality team
- Your qualification expectations: who writes IQ and OQ, who executes, and who signs
- Site constraints: footprint, ceiling height, utilities, and how the machine gets through the door
Next Steps
Motionwell designs and builds assembly, test, inspection, and filling equipment for medical device manufacturers in Singapore, and supports the qualification work that goes with it.
Contact the engineering team with your product, your volumes, and your quality requirements, and we will assess feasibility and propose a concept. If liquid or semi-solid dosing is part of the process, start instead with our filling machines page.
