What Is a SCARA Robot?
A SCARA robot has four axes of motion: two rotary joints in the horizontal plane (J1, J2), one vertical linear axis (Z), and one rotary axis at the wrist (J4 for rotation). This 4-axis configuration covers the vast majority of electronics assembly tasks: pick up a component, move it horizontally, rotate it to the correct orientation, and place it down.
| SCARA axis | Motion | Function in electronics assembly |
|---|---|---|
| J1 (shoulder) | Horizontal rotation | Large horizontal repositioning |
| J2 (elbow) | Horizontal rotation | Fine horizontal positioning |
| Z (vertical) | Linear up/down | Pick-up and place-down motion |
| J4 (wrist) | Rotation around Z | Component orientation correction |
The key mechanical advantage of SCARA is that all horizontal loads are carried by the rotary joints, while the vertical axis only handles the Z-direction force (gravity + insertion force). This separation allows very fast horizontal motion with high vertical rigidity — exactly what electronics assembly requires.
SCARA vs. Other Robot Types
Every robot type has a different strength profile. SCARA dominates a specific application space: high-speed, horizontal-plane tasks with moderate payload.
| Factor | SCARA | 6-Axis | Cobot | Cartesian/Gantry |
|---|---|---|---|---|
| Speed (pick-and-place cycle) | 0.5-0.8 sec | 1.0-1.5 sec | 1.5-3.0 sec | 0.8-1.5 sec |
| Repeatability | ±0.01-0.02 mm | ±0.02-0.05 mm | ±0.03-0.10 mm | ±0.01-0.05 mm |
| Payload range | 1-20 kg | 3-300+ kg | 3-25 kg | 5-100+ kg |
| Reach | 200-1000 mm | 500-3000+ mm | 500-1300 mm | Custom (unlimited) |
| Footprint | Very compact | Moderate | Moderate | Large (frame structure) |
| Cost (comparable payload) | SGD 15,000-45,000 | SGD 30,000-80,000 | SGD 25,000-55,000 | SGD 20,000-60,000 |
| Orientation flexibility | Limited (4 axes) | Full (6 axes) | Full (6 axes) | Limited (3-4 axes) |
| Best application | Pick-and-place, insertion, dispensing | Complex 3D paths, welding, polishing | Human collaboration, flexible tasks | Long-travel, heavy payload |
| Programming complexity | Low-medium | Medium-high | Low (teach pendant/hand guide) | Low |
| Safety fencing required | Yes (high speed) | Yes (high speed/force) | No (force-limited) | Depends on speed |
When to choose SCARA: Your task involves picking parts from a tray, feeder, or conveyor, moving them horizontally, and placing them onto an assembly, test fixture, or packaging tray. The parts weigh under 20 kg. Speed matters. The motion is primarily in the horizontal plane.
When NOT to choose SCARA: Your task requires complex 3D tool paths (use 6-axis), human collaboration without safety fencing (use cobot), or very long travel distances (use cartesian/gantry).
Why SCARA Dominates Electronics Manufacturing
Electronics manufacturing has specific characteristics that align with SCARA robot strengths.
Speed
Electronics assembly cycle times are measured in seconds, not minutes. A typical SMT (Surface Mount Technology) line runs at thousands of placements per hour. While SCARA robots do not compete with dedicated SMT placement machines for chip-scale components, they handle larger component assembly, sub-assembly transfer, and board handling at speeds that 6-axis robots and cobots cannot match.
A standard Epson SCARA achieves a 0.35-second standard cycle time (300 mm horizontal, 25 mm vertical, 300 mm horizontal return). In real production with vision guidance and settling time, Motionwell achieves 0.5-0.8 second pick-and-place cycles.
Precision
Electronics assembly demands placement accuracy in the range of ±0.02-0.10 mm. SCARA robots achieve ±0.01-0.02 mm repeatability from the factory, and with vision guidance, effective placement accuracy reaches ±0.01 mm. This exceeds the requirements for most electronics assembly tasks except the finest-pitch semiconductor packaging.
Compact Footprint
Factory floor space in Singapore is expensive. A SCARA robot with 400 mm reach occupies roughly a 500 x 500 mm footprint on the mounting surface — significantly smaller than a comparable 6-axis robot or cartesian system. Multiple SCARA stations can be placed side by side on a compact assembly line.
Cost
SCARA robots are typically 40-60% less expensive than comparable-payload 6-axis robots. An Epson T-series SCARA with 6 kg payload costs SGD 15,000-25,000 for the robot alone. When you factor in the simpler programming, faster commissioning, and lower maintenance of a 4-axis system, the total cost of ownership advantage is even larger.
SCARA Applications in Electronics Manufacturing
Panel Assembly and Component Insertion
Motionwell’s ifm panel assembly project (P23045) is a reference implementation of vision-guided SCARA assembly for electronics manufacturing. ABB SCARA robots pick components from trays, align them using Keyence vision feedback, and insert them into panel assemblies with ±0.01 mm accuracy.
The system includes:

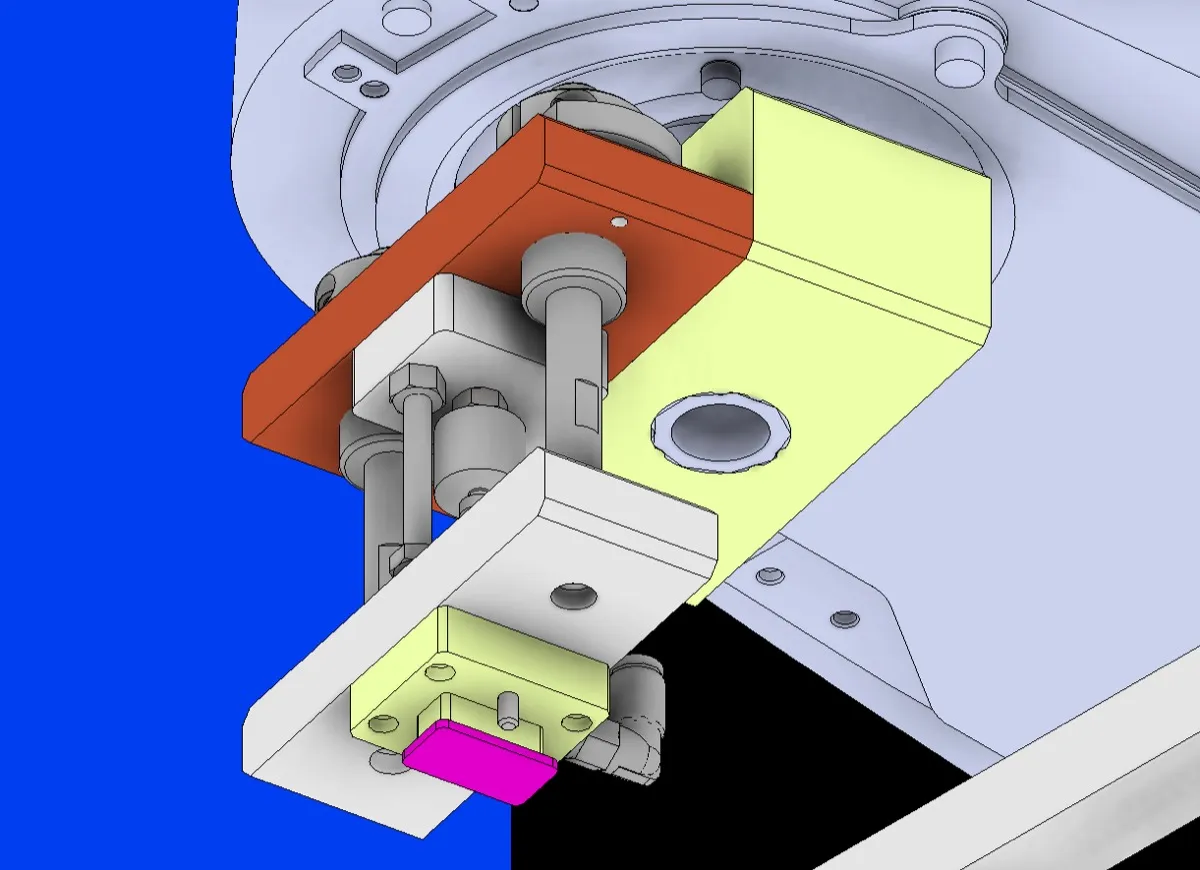

- ABB SCARA robots with vacuum end-of-arm tooling (EOAT)
- Keyence vision cameras for component location and alignment verification
- Electric screwdrivers for fastening operations
- Allen-Bradley PLC for cell coordination and data logging
- Conveyor system for panel transport between stations
Vision guidance eliminates the need for high-precision component trays. Parts can be presented in approximate positions, and the vision system measures the exact location and orientation for each pick. This reduces tray tooling cost and allows faster changeover between product variants.
Pick-and-Place (Tray-to-Tray, Feeder-to-Assembly)
The most common SCARA application in electronics is transferring components from feeding systems (vibratory feeders, tray stackers, tube feeders) to assembly positions. SCARA handles this faster than any other robot type at the relevant payload range.
Typical pick-and-place parameters in electronics:
| Parameter | Typical range | What determines it |
|---|---|---|
| Cycle time | 0.5-1.5 seconds per pick-place | Travel distance, settling time, vision processing |
| Part weight | 1-500 grams | Component and carrier weight |
| Placement accuracy | ±0.02-0.10 mm | Part tolerance requirement, vision calibration quality |
| Part presentation | Tray, vibratory feeder, tape and reel, conveyor | Part geometry, feed rate requirement, cost |
| EOAT type | Vacuum cup, vacuum pad, mechanical gripper | Part surface, weight, shape |
Soldering and Dispensing
SCARA robots perform selective soldering and adhesive/solder paste dispensing where the dispensing path is primarily in the horizontal plane. The robot carries a soldering iron, solder wire feeder, or dispense valve and follows programmed paths across the workpiece.
For dispensing applications, the Z-axis accuracy and the robot’s vibration characteristics are critical — any vibration during dispensing causes inconsistent bead width or dot size. SCARA robots with direct-drive motors (no belt or gear backlash) provide the smoothest motion for dispensing tasks.
Testing and Inspection Station Loading
SCARA robots load and unload parts from test fixtures, inspection stations, and measurement equipment. The robot picks a part from an input conveyor or tray, places it precisely in a test fixture, waits for the test to complete, retrieves the part, and sorts it to pass or fail output positions.
In Motionwell’s BD rotary assembly machines (P22068, P23003), Epson SCARA robots perform vision-based OK/NG sorting at the output station. The vision system inspects each completed assembly, and the SCARA sorts it to the appropriate output based on the inspection result.
Board Handling and Conveyor Transfer
SCARA robots transfer PCBs between process stations, conveyors, and storage magazines. The vacuum EOAT contacts the board surface without mechanical clamping, avoiding damage to sensitive components. Conveyor synchronization (tracking a moving conveyor with the robot) allows pick-and-place without stopping the line.
SCARA Brands Motionwell Integrates
Epson SCARA (Primary Platform)
Epson is Motionwell’s primary SCARA platform for electronics and medical device assembly. Epson SCARA robots offer a strong combination of speed, precision, and compact design. The RC+ development environment provides straightforward programming with integrated vision support.
| Epson SCARA series | Payload | Reach | Repeatability | Typical Motionwell application |
|---|---|---|---|---|
| T-series (T3, T6) | 3-6 kg | 300-600 mm | ±0.01 mm | Pick-and-place, vision-guided assembly |
| LS-series (LS3, LS6, LS20) | 3-20 kg | 400-1000 mm | ±0.01-0.02 mm | Heavier assembly, palletizing, machine tending |
| G-series (G1, G3, G6) | 1-6 kg | 175-600 mm | ±0.005-0.01 mm | High-precision, high-speed micro-assembly |
ABB SCARA
ABB SCARA robots are integrated in projects where the customer has existing ABB infrastructure or when the application benefits from ABB’s RobotStudio offline programming and OmniCore controller platform. The ifm panel assembly (P23045) uses ABB SCARA for its integration with ABB’s vision and force control capabilities.
Other Compatible Platforms
Motionwell has integration experience with Yamaha, Denso, and Mitsubishi SCARA robots. Platform selection follows the customer’s existing infrastructure and regional support availability — Motionwell does not lock customers into a single brand.
Integration Considerations
Vision Guidance
Vision-guided SCARA is the standard approach for electronics assembly where part presentation varies. The camera (mounted above the workspace or on the robot) locates the part, calculates the position offset, and sends correction data to the SCARA controller.
Camera mounting options:
| Mounting | Advantages | Disadvantages | Best for |
|---|---|---|---|
| Fixed overhead | Simple calibration, does not affect cycle time | Limited to one viewing area | Pick station with consistent part area |
| Robot-mounted (eye-in-hand) | Flexible viewing, works with moving parts | Adds weight, slower (must stop to capture) | Variable pick locations, large work area |
| Fixed upward-looking | Inspects part after pick (underside view) | Adds travel time to pass over camera | Part orientation verification after pick |
Motionwell’s standard approach uses a fixed overhead camera at the pick station for part location, combined with a fixed upward-looking camera for picked-part verification when required. This provides reliable position data without adding weight to the robot arm.
Feeding Systems
The SCARA robot needs a consistent supply of parts. The feeding system must match the robot’s cycle time and handle the part geometry without damage.
| Feeding method | Suited part types | Feed rate | Cost |
|---|---|---|---|
| Vibratory bowl feeder | Small, symmetrical parts (screws, caps, pins) | 30-120 parts/min | SGD 5,000-15,000 |
| Tray stacker/unstacker | Fragile or orientation-sensitive parts | Tray-dependent | SGD 10,000-25,000 |
| Tape and reel feeder | SMD components, connectors | Component-dependent | SGD 3,000-10,000 |
| Flexible feeder (FlexiBowl) | Mixed shapes, small batches, variable parts | 10-40 parts/min | SGD 15,000-30,000 |
| Conveyor with vision | Any shape (vision locates parts on belt) | Line-speed dependent | SGD 8,000-20,000 |
For high-mix electronics assembly, Motionwell often uses flexible feeders (FlexiBowl or equivalent) combined with vision-guided SCARA. The flexible feeder agitates parts onto a flat surface, and the vision system identifies the part type, location, and orientation for the robot to pick. This approach handles product changeover without mechanical adjustment.
Conveyor Synchronization
When parts arrive on a moving conveyor, the SCARA must synchronize its motion with the conveyor speed to pick accurately without stopping the line. Both Epson and ABB SCARA controllers support conveyor tracking with encoder feedback. The robot predicts the part position and adjusts its path in real time.
Conveyor tracking requires:
- Encoder mounted on the conveyor drive
- Vision trigger upstream of the pick point (to detect and locate parts)
- Robot controller with conveyor tracking function
- Sufficient reach and speed to complete the pick within the tracking window
Safety and Cell Layout
SCARA robots in electronics manufacturing operate at high speed (up to 10 m/s tip speed) and require safety fencing or equivalent safeguarding. The cell layout must provide:
- Safety-rated perimeter guarding (physical fence, light curtains, or safety scanner zones)
- Interlocked access doors for maintenance and part replenishment
- E-stop accessible from all operator positions
- Safe separation between robot reach envelope and operator access areas
For compact cell layouts, Motionwell uses safety-rated area scanners (SICK or Pilz) that define speed-limited and stop zones without physical fencing. This saves floor space while maintaining safety compliance per ISO 10218-2.
Motionwell Reference Projects
ifm Panel Assembly (P23045)
ABB SCARA robots with Keyence vision for electronics panel assembly. The system achieves ±0.01 mm placement accuracy with vacuum EOAT and electric screwdriver integration. Full production data logging through Allen-Bradley PLC to factory MES.
BD Medical Device Rotary Assembly (P22068, P23003)
Epson SCARA robots for vision-based OK/NG sorting at the output station of a 12-station rotary assembly machine. The SCARA picks completed assemblies and sorts them based on multi-point vision inspection results. Cycle time: under 2 seconds per sort operation.
Electronics Component Testing
SCARA robot loading and unloading of test fixtures for electronics component functional testing. The robot picks components from input trays, places them in test sockets with precise alignment, and sorts tested parts to pass/fail output trays. Integrated with Allen-Bradley PLC and test data logging.
Getting Started with SCARA Integration
If you are considering SCARA robots for your electronics manufacturing process, contact Motionwell with:
- Part geometry and weight (drawings or samples)
- Current process description and cycle time target
- Placement accuracy requirement
- Production volume (parts per hour, shift pattern)
- Existing PLC and control infrastructure
- Clean environment requirements (if any)
Motionwell will evaluate the application, recommend a SCARA platform and cell configuration, and provide a budget estimate. For projects involving vision guidance, we conduct a vision feasibility study with your actual production parts before committing to a system specification.
For more information on Motionwell’s robot integration across SCARA, cobot, 6-axis, AGV, and AMR platforms, contact the engineering team. For electronics-specific automation solutions, see our Electronics and Semiconductor industry page.
